Hal

Hal is a home automation hub with sensor statistics with the functionality to share that data between friends. It has been developed to be very extensible so future Sensors and other input devices can be supported.

Features:

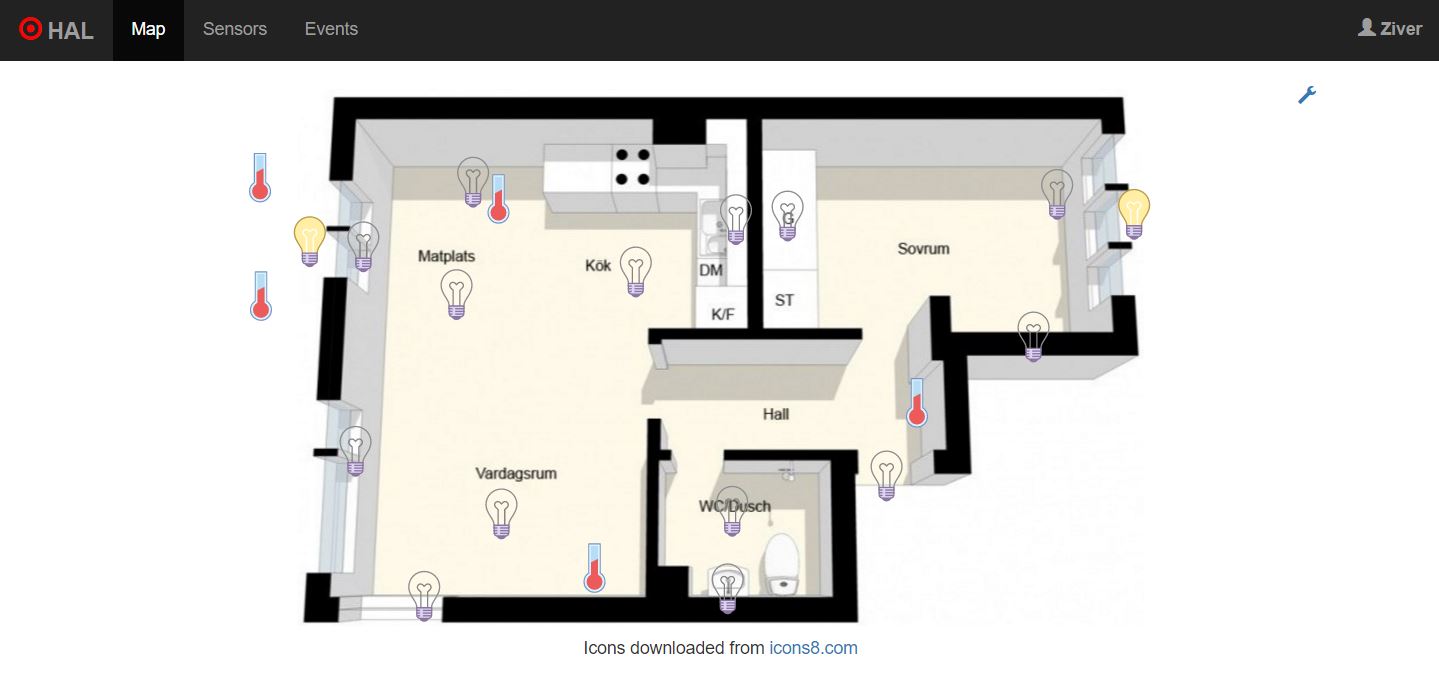

• Map, Set up a house map with sensors and events mapped on a floorplan
• Triggers and Actions, IFTTT type functionality

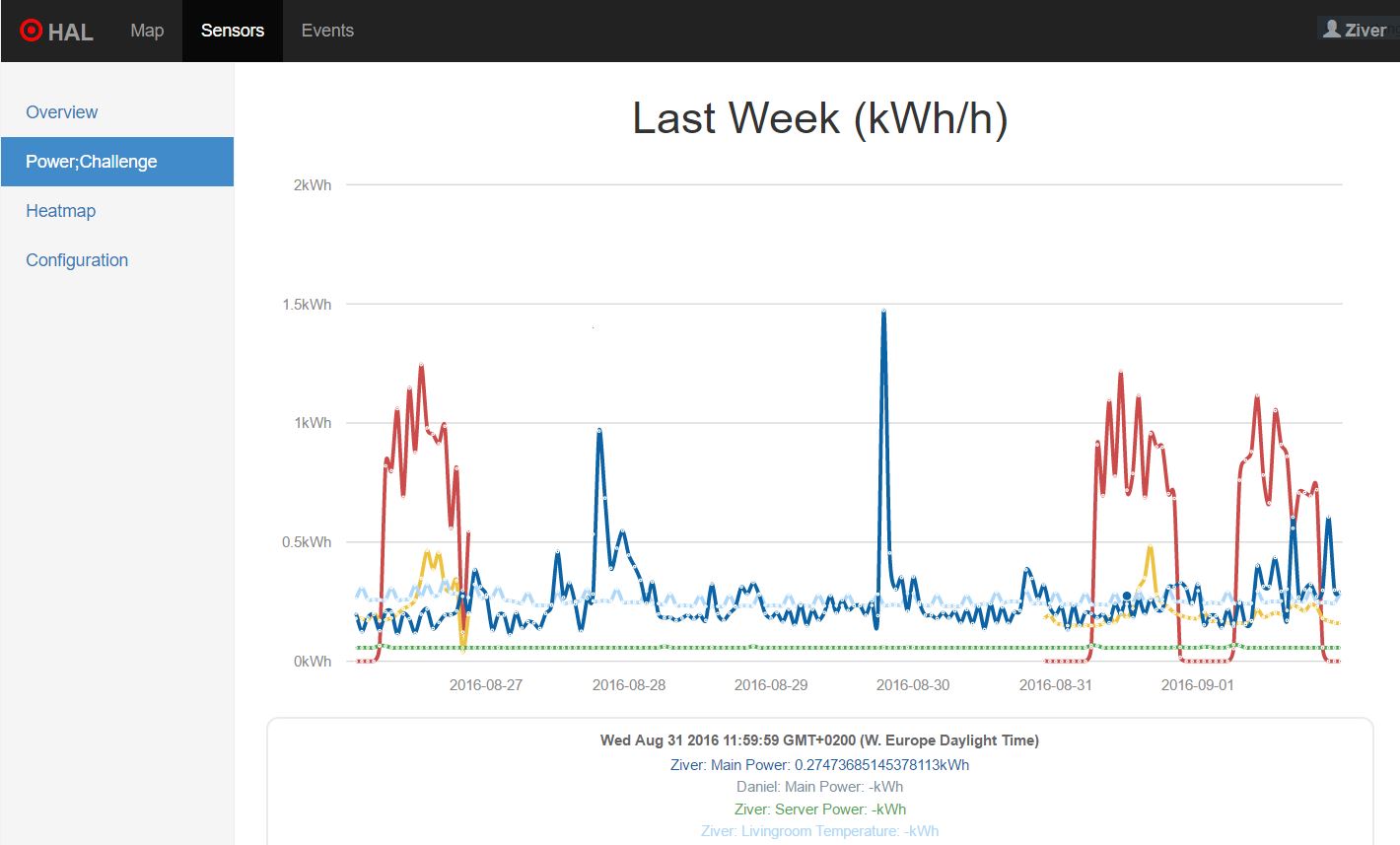

• Power;Challenge, Sync power or sensor usage between friends to challenge each other to lower the power usage
• Google Assistant Integration

Currently supported devices:

• Network Scanner, IP scanner to detect devices on local network
• NUT, Linux UPS daemon
• Tellstick, Supported devices:
  • NexaSelfLearning
  • Oregon0x1A2D
• Raspberry Pi, GPIO connected sensors
• Zigbee
  • Temperature Sensors
  • Humidity Sensors
  • Pressure Sensors
  • OnnOff Devices
• Google Assistant
• MQTT Devices

Under development (Not ready to be used yet)

• Z-Wave

The project is currently in alpha state, and as such things will change and break continuously.

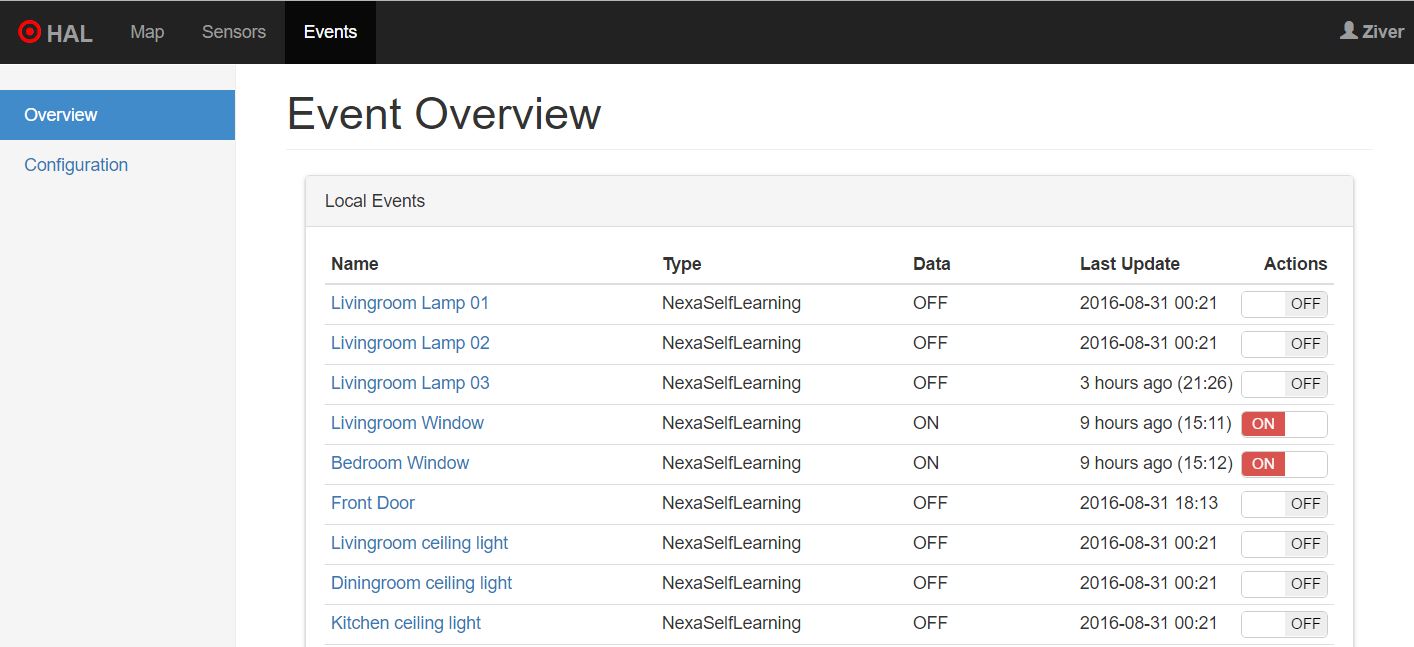

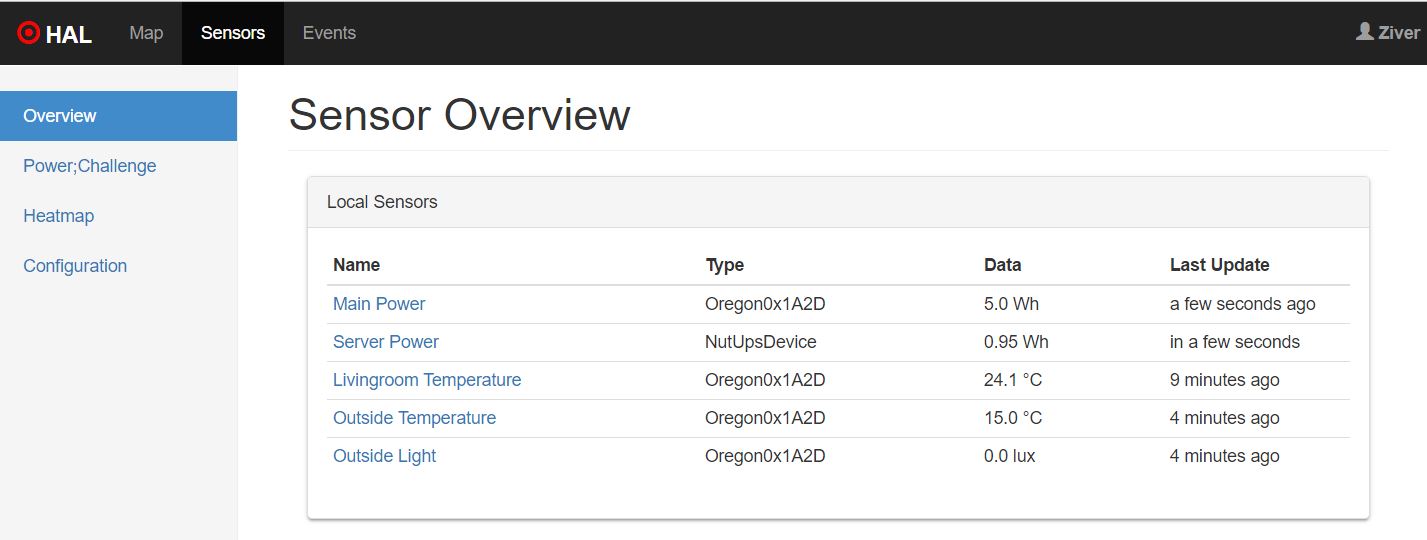

Screenshots

Installing

To run the Hal server you first need to clone the git repository and then run the gradle command to build and run the server:

./gradlew run

Check hal.conf.example for available configuration options. By default, HAL server will be listening to http://localhost:8080.

Running the tests

The current test coverage is greatly lacking, but to run the available JUnit test-cases run:

./gradlew test

Architecture

 HalAbstractControlerManager
       |
       |             HalAbstractController
       |                   |
       |                   |              HalAbstractDevice
       |                   |                   |
 .-----------.       .------------.       .--------.
 |           |       |            |       |        |
 |           |       |            | ----> | Device |
 |           |       |            |       |        |
 |           | ----> | Controller |       '--------'
 |           |       |            |       .--------.
 |           |       |            |       |        |
 |  Manager  |       |            | ----> | Device |
 |           |       |            |       |        |
 |           |       '------------'       '--------'
 |           |       .------------.       .--------.
 |           |       |            |       |        |
 |           | ----> | Controller | ----> | Device |
 |           |       |            |       |        |
 '-----------'       '------------'       '--------'


Authors

• Daniel Collin
• Ziver Koc

License

This project is licensed under the MIT License - see the LICENSE.txt file for details

Acknowledgments

• Tellstick, for open-sourcing their code
